The results of the RF upper-air network performance monitoring. IV Quarter of 2023.


Upper-air data quality marks

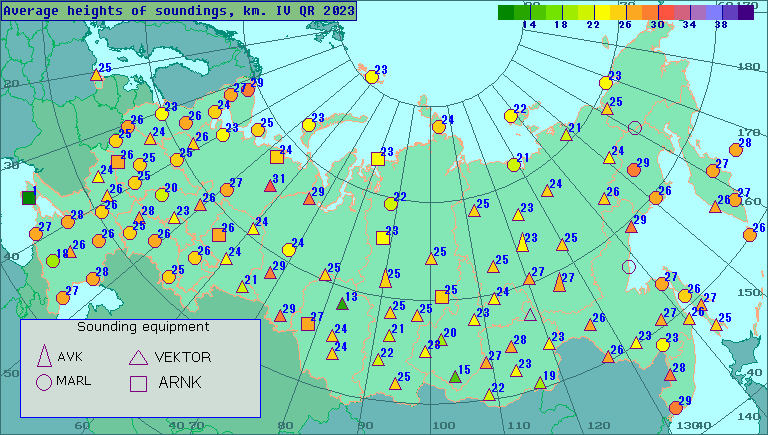

Average heights of soundings
Average heights of soundings
In the previous Quarter | Up..

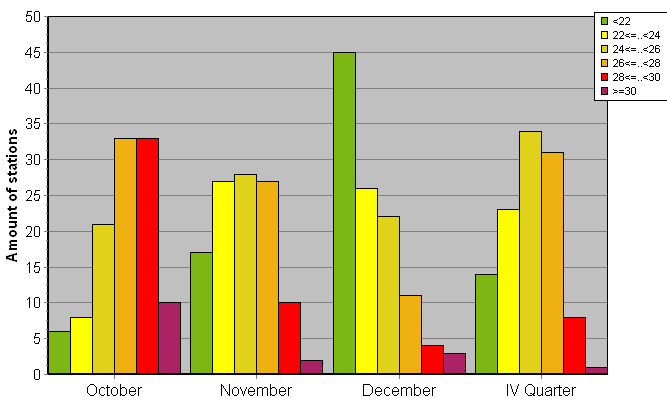

Distribution of stations amount by average heights of soundings, km
Distribution of stations amount by average heights of soundings
In the previous Quarter | Up..

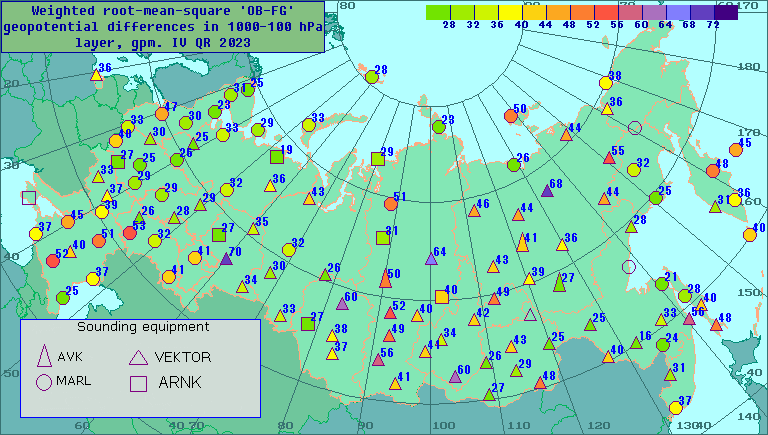

Weighted root-mean-square 'OB-FG' geopotential differences in 1000-100 hPa layer
Weighted root-mean-square 'OB-FG' geopotential differences in 1000-100 hPa layer, gpm
In the previous Quarter | Up..

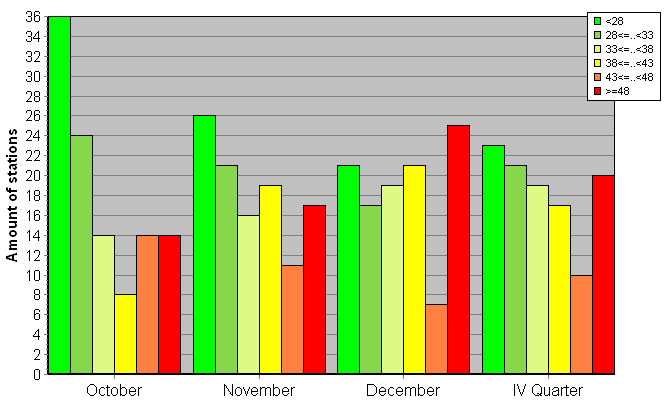

Distribution of stations amount by weighted root-mean-square 'OB-FG' geopotential differences, gpm
Distribution of stations amount by weighted root-mean-square 'OB-FG' geopotential differences
In the previous Quarter | Up..

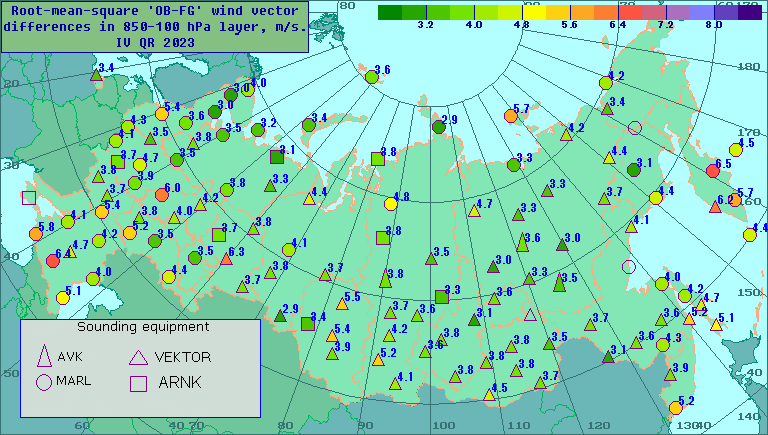

Root-mean-square 'OB-FG' wind vector differences in 850-100 hPa layer, m/s
Root-mean-square 'OB-FG' wind vector differences in 850-100 hPa layer
In the previous Quarter | Up..

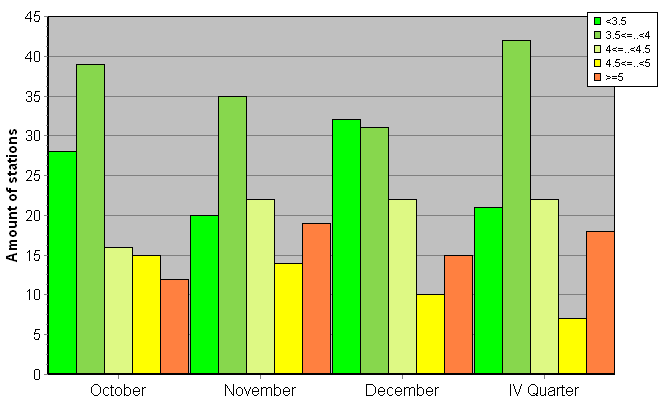

Distribution of stations amount by root-mean-square 'OB-FG' wind vector differences, m/s
Distribution of stations amount by root-mean-square 'OB-FG' wind vector differences, m/s
In the previous Quarter | Up..
