The Federal Service for Hydrometeorology and Environmental Monitoring (Roshydromet)

Federal State Budgetary Institution   "CENTRAL AEROLOGICAL OBSERVATORY"

  (FSBI "CAO")

Department of atmospheric composition investigations (DACI)



 High-accuracy groundbased total ozone and total nitrogen dioxide measurements.


Network for  total ozone and total nitrogen dioxide measurements using high-accuracy ground-based spectrometers.

    Since 2009 Central Aerological Observatory started to create Russian network for  total ozone and total nitrogen dioxide measurements using high-accuracy ground-based spectrometers.  The network use as Mini-SAOZ spectrometers as Brewer spectrophotometers:

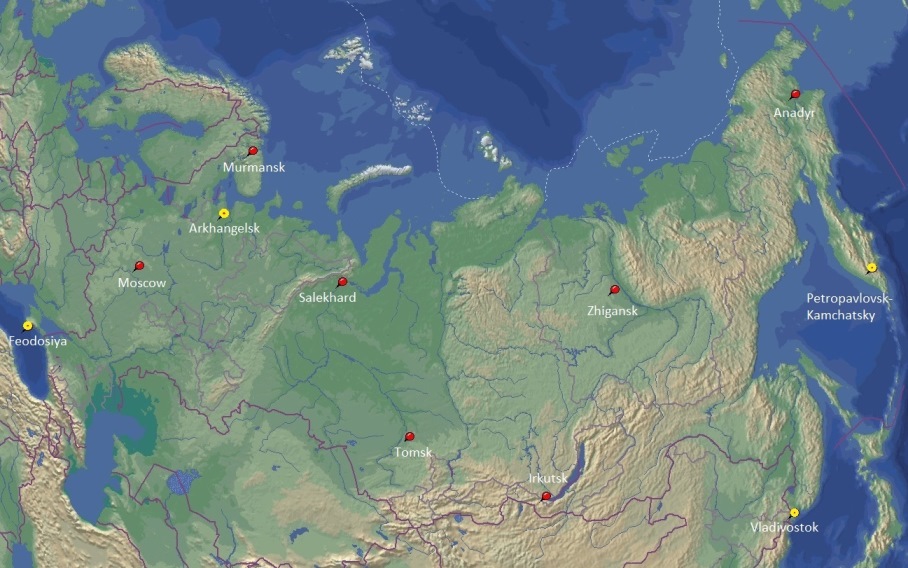

Station lat lon Instrument Since
Anadyr 64.5 177.3 Mini-SAOZ 03 2011
Arkhangelsk 64.6 40.5 SAOZ 2016
Feodosiya 44.5 35.1 Mini-SAOZ 16 2015
Irkutsk 52.3 104.3 Mini-SAOZ 09 2014
Moscow 55.9 37.5 Mini-SAOZ 02, 04 2010
Moscow 55.9 37.5 Mini-SAOZ 06, 07 2012
Moscow 55.9 37.5 BREWER #222 2014
Murmansk 69 33.1 Mini-SAOZ 04 2012
Petropavlovsk-Kamchatsky 53.1 158.6 Mini-SAOZ 17 2015
Salekhard 66.5 66.7 Mini-SAOZ 10 2013
Tomsk 56.3 85.0 BREWER #049 2003
Vladivostok 43.1 131.9 Mini-SAOZ 15 2015
Zhigansk 66.8 123.4 Mini-SAOZ 02 2012



  SAOZ (mini)

 SAOZ is UV-Visible (300-650 nm) diode array spectrometer developed at the Service d’Aéronomie in the late 80’s for monitoring stratospheric ozone. It is a diode array flat field spectrometer of 1 nm resolution looking at sunlight scattered at zenith during twilight. The data analysed by Differential Optical Absorption Spectrometry allow the retrieval of daily ozone and NO2 total columns at sunrise and sunset, as well as total water vapour and oxygen dimmer and the detection of Polar Stratospheric Clouds (PSC) and volcanic aerosols. The ozone measurement for the first time in the visible Chappuis bands between 450-600 nm, allows the continuous monitoring of the species throughout the year at the latitude of the polar circle, in all weather conditions.

The mini-SAOZ is a UV-Visible spectrometer, developed at LATMOS since 2009 on more advanced technology. The instrument is a spectrometer from Avaspec with an optical fibre and a CCD detector (active surface with 2048 x 14 pixels). It is made of an optical bench Czerny Turner spectrometer.





BREWER spectrophotometer

    The BREWER Spectrophotometer consists of a weatherproof spectrophotometer, azimuth tracker and stand. It provides near simultaneous observations of the total ozone column, SO2, and UV spectra. The two-axis tracking, appropriate filter selections, on-board wavelength calibration and data logging are managed through internal electronics and an IBM compatible host computer. Control software for the PC enables 24 hr scheduling and remote unattended operation. Brewer Mark III #222 spectrophotometer was installed at the station Dolgoprudny.





DOBSON spectrophotometer  №107

Dobson 107 at the station Dolgoprudny was included in NDACC (Network for the Detection of Atmospheric Composition Change).  Total ozone data were passed to WOUDC (World Ozone and Ultraviolet Radiation Data Centre).

Observed data

Dolgoprudny (55.9 N 37.5 E)

Total ozone SAOZ (mini)      2011 2012 2013 2014

Total NO2  SAOZ (mini)      2011 2012 2013 2014

 SAOZ (mini) data  2011 2012 2013 (#06) 2013 (#07) 2014 (#06) 2014 (#07)

BREWER 222                    2014

BREWER №222 data        2014



Anadyr (64.5 N 177.3 E)

Total ozone SAOZ (mini)            2011 2012 2013 2014

Total NO2  SAOZ (mini)            2011 2012 2013 2014

 SAOZ (mini) data                     2011 2012 2013 2014



Murmansk (68.6 N 33.1 E)

Total ozone SAOZ (mini)            2012  2013

Total NO2  SAOZ (mini)            2012 2013

 SAOZ (mini) data                      2012 2013



Zhigansk (66.8 N 123.4 E)

Total ozone SAOZ (mini)             2012

Total NO2  SAOZ (mini)            2012

 SAOZ (mini) data                       2012



Irkutsk (52.3 N 104.3 E)

Total ozone SAOZ (mini)             2014

Total NO2  SAOZ (mini)             2014

 SAOZ (mini) data                        2014

Salekhard (66.5 N 66.7 E)

Total ozone SAOZ (mini)             2013   2014

Total NO2  SAOZ (mini)            2013  2014

 SAOZ (mini) data                       2013  2014



We express our thanks to our network operators

Maks Mikhailenko (Anadyr)

Nataly Konyakina (Murmansk)

Vasily Lulkin (Zhigansk)

Svetlana Tomshina (Irkutsk)

Tamara Dushkina (Salekhard)

and Network coordinator Vera Sitnikova (Dolgoprudny)
